Flying Lead Conical Inductors
![Flying Lead Conical Inductors](/wp-content/uploads/2021/05/Micro-Series-300x300.png)

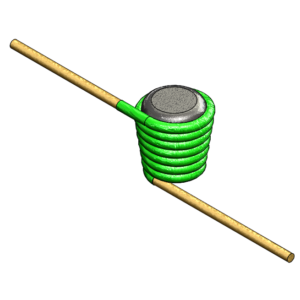

Micro Series
Micro – Sized Footprint
Inductance: .024 – .250 uH
Current Rating: 230 – 1300 mA
Frequency: 65+ GHz
![Flying Lead Conical Inductors](/wp-content/uploads/2021/05/50-AWG-Series-300x300.png)

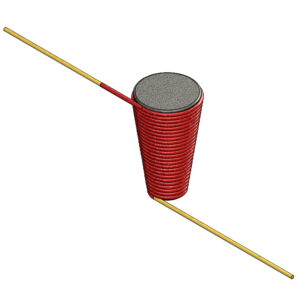

50 AWG Series
Increased Inductance in a Micro-Sized Package
Inductance: .125 – .800 uH
Current Rating: 125 – 175 mA
Frequency: 65+ GHz
![Flying Lead Conical Inductors](/wp-content/uploads/2021/05/G5-Series-Low-Current-300x300.png)
G5: 100-500 mA
Higher Inductance Values than Micro Series
Inductance: .125 – 8.00 uH
Current Rating: 100 – 440 mA
Frequency: 65+ GHz
![Flying Lead Conical Inductors](/wp-content/uploads/2021/05/G5-Series-High-Current-300x300.png)

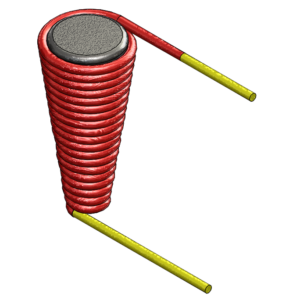

G5: 500-2500 mA
Higher Current Handling Capability
Inductance: .145 – 23.00 uH
Current Rating: 600 – 2750 mA
Frequency: 36 GHz
![Flying Lead Conical Inductors](/wp-content/uploads/2021/05/X-Series-300x300.png)

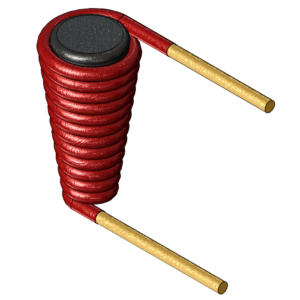

-X Power Conicals
Higher Current Handling & Lower Loss Loading
Inductance: .062 – .450 uH
Current Rating: 1000 – 2750 mA
Frequency: 18 GHz
![Flying Lead Conical Inductors](/wp-content/uploads/2021/05/G100-Series-300x300.png)
G100 Series
Inductance: .425 – 8.00 uH
Current Rating: 100 – 1000 mA
DCR Max: .135 - 7.270 Ohms
![Flying Lead Conical Inductors](/wp-content/uploads/2024/02/CC75T44K240GAU.png)

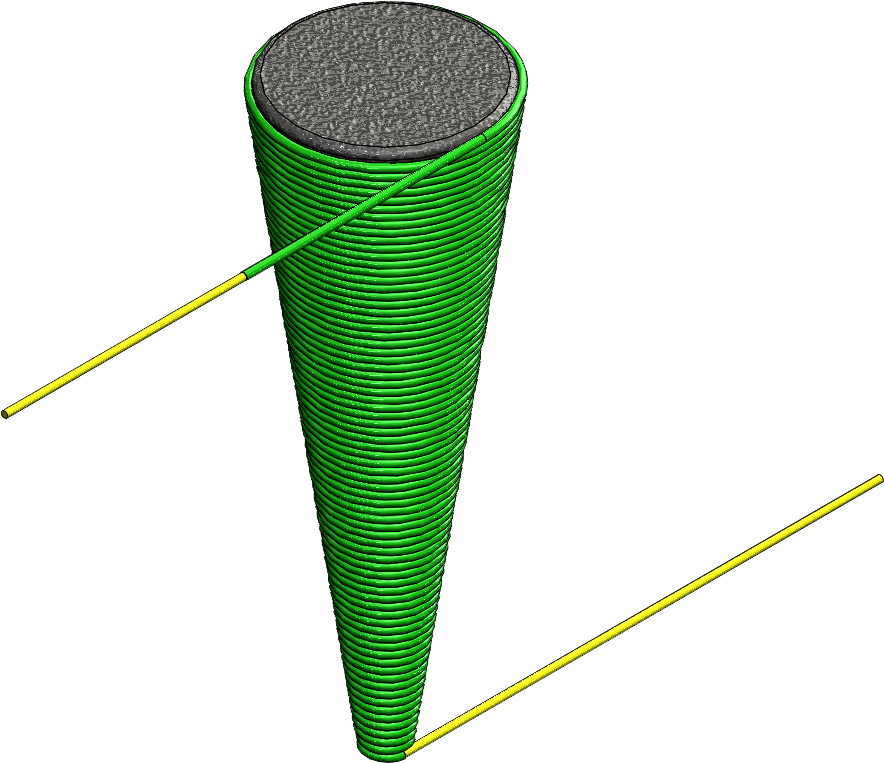

GAU Series
Enhanced bond performance in Hybrid assembly applications
Inductance: .045 – 8 uH
Current Rating: 100 – 400 mA
Frequency: 40 GHz
![Flying Lead Conical Inductors](/wp-content/uploads/2024/02/CC55T47K240GXX-004.png)

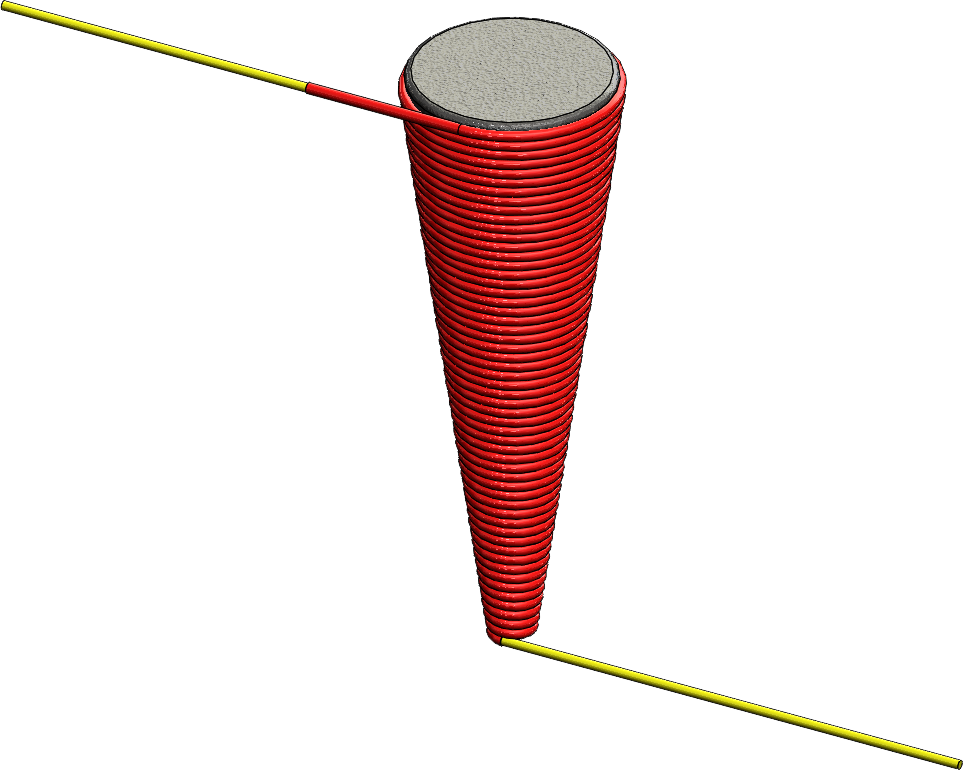

-004 Series
Broadband performance up to 90 GHz
Inductance: .125 – 1 uH
Current Rating: 150 – 200 mA
Frequency: 90 GHz
