Surface Mount Conical Inductors

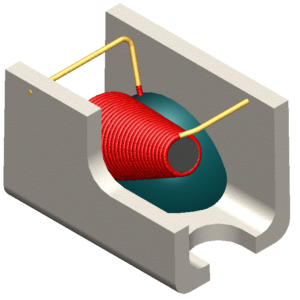

Micro-SMT

Smallest SMT Conical Footprint Available
Inductance: .047 – .250 uH
Current Rating: 230 – 1300 mA
Footprint: .040 x .060 inch (W x L)

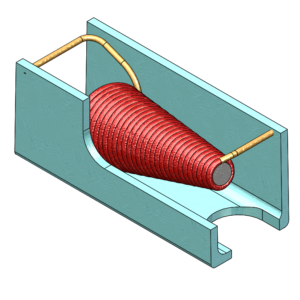

Inductance: .220 – 8.0 uH
Current Rating: 100 – 1000 mA
Footprint: .050 x .110 / .090 x .230 / .100 x .150 inch (W x L)

Simulation Models
-Free 90 Day Trial-

Custom Conicals Available Upon Request
