Manufacturing Services & Capabilities
Custom Subassemblies
Piconics can simplify your manufacturing needs by providing subassemblies and surface mount packages. Piconics also provides custom windings to customer specifications.
![Manufacturing Services & Capabilities](/wp-content/uploads/2021/03/Bias-T-possibly.jpg)

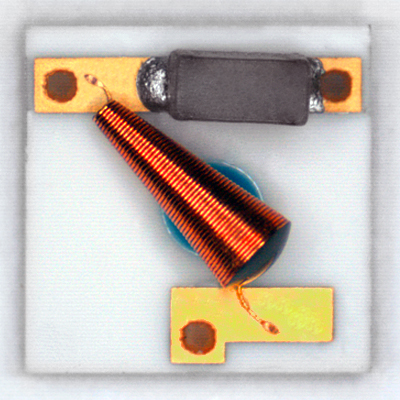

- Mounting of conicals & air coils onto custom substrates
- Mounting of capacitors & resistors as small as 0101 onto substrates
- Subassemblies for wire bond applications
- Provides end user with drop in turn key assembly saving time & money
Services & Capabilities
Design
- RF through MM wave design experience
- Design to meet electrical values in a specified mechanical footprint (Inductance, Q , SRF)
- In-house electrical & environmental test labs
- Mechanical packaging (SMT, Through Hole, Custom molded)
- Solidworks CAD Support
- Assistance in creation of SCD with Upscreen testing
![Manufacturing Services & Capabilities](/wp-content/uploads/2021/06/Solidworks-Part-for-Services-Capabilities-Page.jpg)
![Manufacturing Services & Capabilities](/wp-content/uploads/2021/03/Guidant-Toroid.jpg)

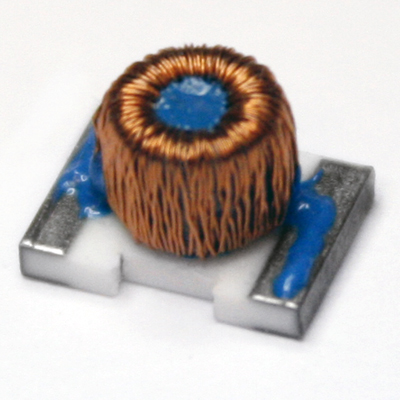

Winding
- Air, toroid, balun, bobbin, form wound & self -bonded coils
- 12 through 54 awg Wire
- Precision insulation stripping & lead plating on fine wire awgs up to 50 awg
- Automated toroid winding to .050 wound inner diameter
- Semi-automated toroid winding below .050 inner wound diameter

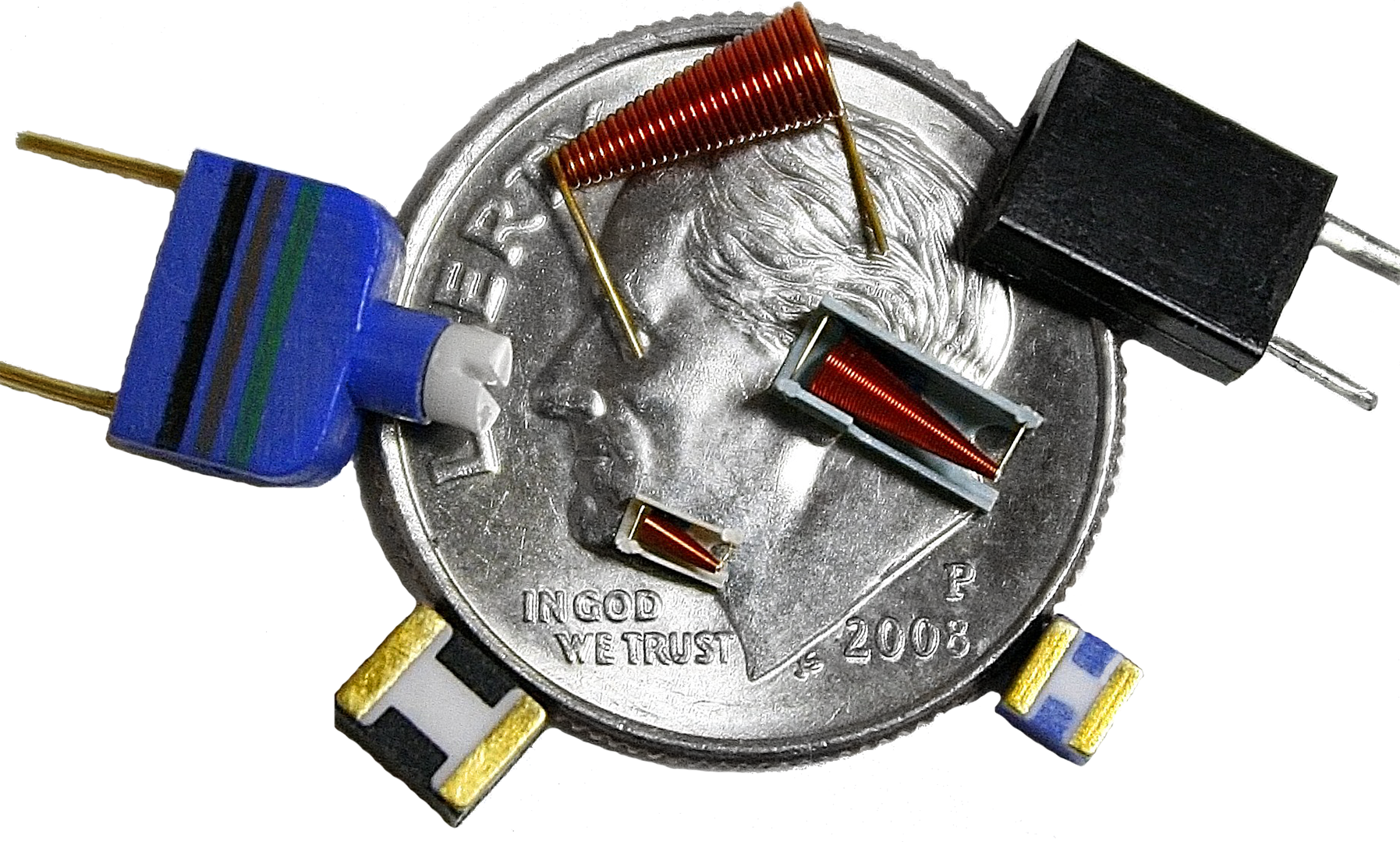

Packaging
- Chip mounted SMT styles
- Leaded thru-hole styles
- Micro-welding & Soldering of fine wires
- Over-molded & Potted assemblies
- Transfer & injection molding capabilities
- Tinning of terminations
- Gold & Tin-lead electroplating
![Manufacturing Services & Capabilities](/wp-content/uploads/2021/03/Products-Parts.png)
